Hook 320A

Hook 320A

Steel hook of 320A type is used in the production of chain slings, wire-rope slings and textile slings (hoist cables), as well as when carrying out towing and rigging operations  as end element. Characteristics: 4x safety margin for tearing (8th strength class), has a fixed eyelet and equipped with a plate lock. Using components of the 8th strength class produced by TOR Industries Company makes it possible to reduce the weight of the sling while maintaining the rated reliability parameters.

Characteristics

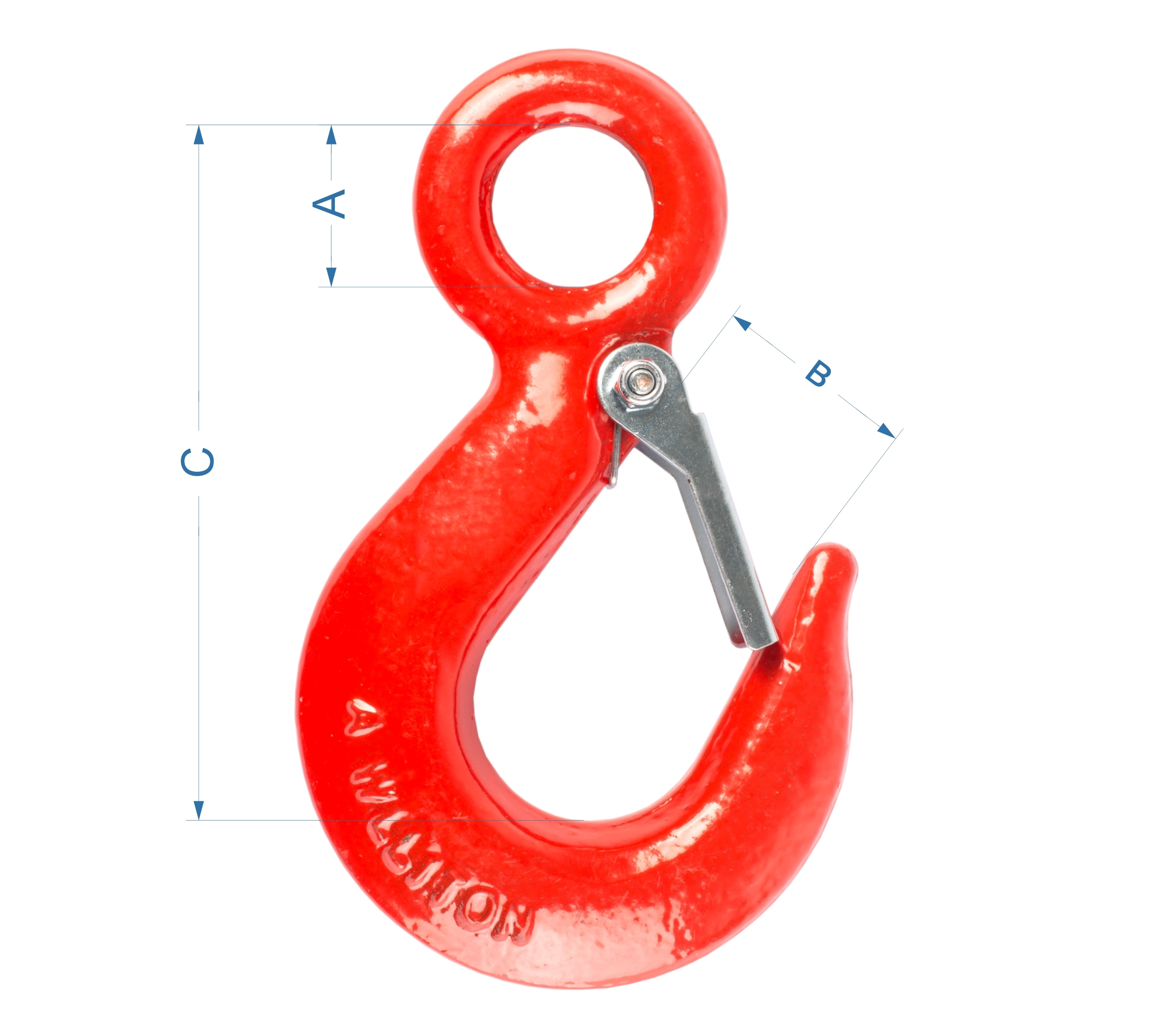

Rated load, t Tear strength, t A, mm   B, mm   C, mm Weight, kg
0,75 3,0 16,0 22,1 71,1 0,16
1,0 4,0 19,1 23,9 81,8 0,25
1,5 6,0 23,1 26,2 93,0 0,34
2,0 8,0 28,4 26,9 103,9 0,56
3,0 12,0 31,8 31,0 119,1 0,77
5,0 20,0 39,6 38,1 146,8 1,6
7,0 28,0 50,8 47,8 187,5 3,2
11,0 44,0 62,0 57,2 230,1 5,9
15,0 60,0 71,9 64,0 256,3 9,9
22,0 88,0 89,9 87,9 309,9 15,2
